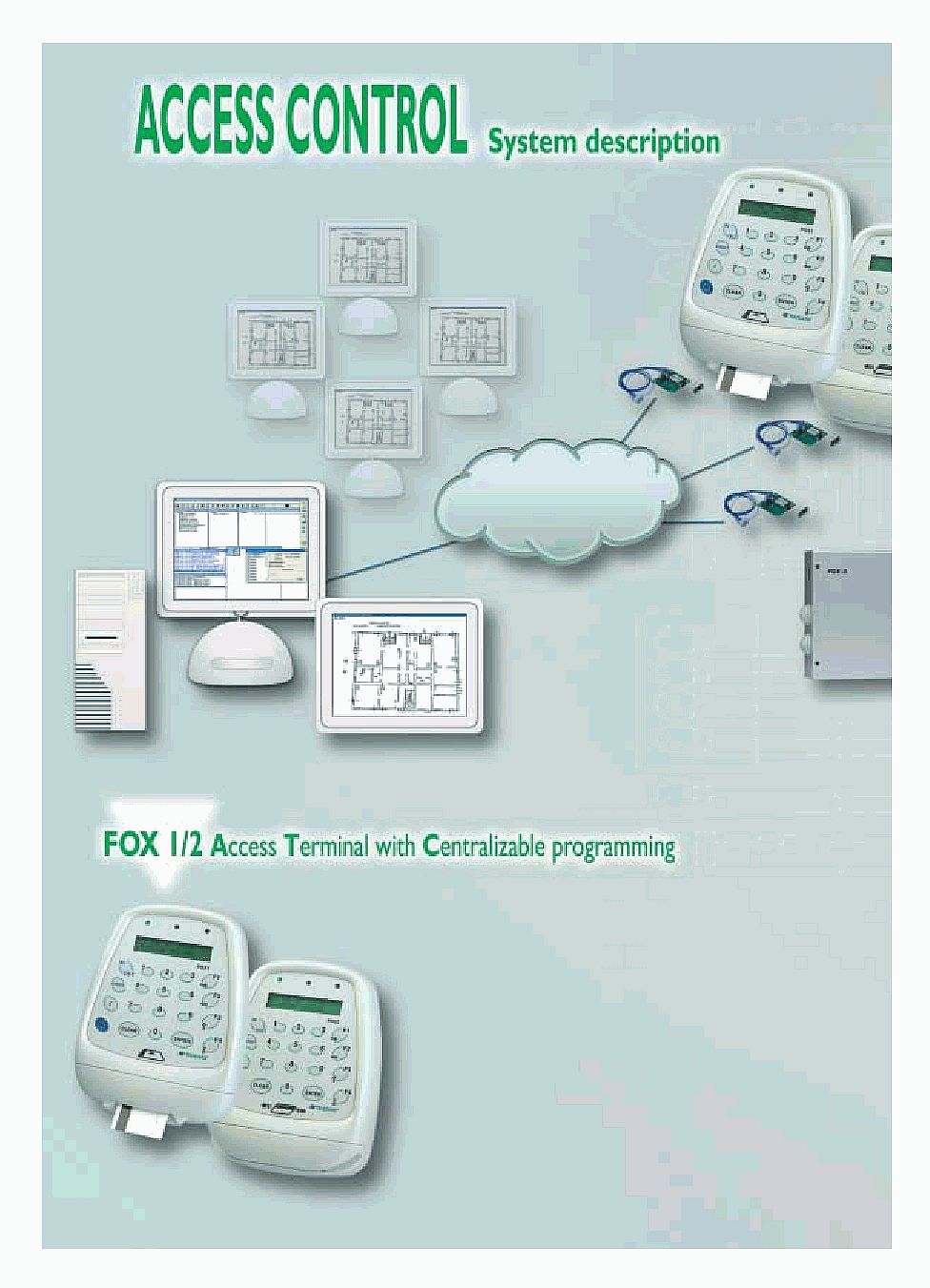

· Crystal display with 20x2 backlight characters
· Frontline keypad with 20 keys
· Provided with magnetic reading head according to ISO/ABA 2

track

· Swipe (FOX2) or insertion (FOX1) type
· 4 open collector inputs, freely programmable

i) door alarm
ii) manual opening etc.

· 3 output exchange relays (1A/12V), freely configurable and 1 10° 12V
· 1 buzzer
· 3 frontline LEDs
· Possible remote programming and management
· Management between the different remote heads
· Storage of up to 2,000/36,000 cards and 10,000 events
· Autonomous card management, autonomous time zone control and antipass back

Management of a second magnetic reading head at up to 400 m distance (RS_485)
Local and centralized programming

· Elegant design
· Multilingual instructions
· It can be centralized on:

- dedicated/dial-up lines
- ISDN
- LAN ETHERNET

· ABS case with following dimensions:

178x227x68 mm

· Weight:

9Kg.

· Power supply:

12Vdc/12Vac

· Consumption:

140 mA

WAN - LAN network

SERVER

CLIENT

FOX 1

PT LAN

FOX 3

Depliant 7-11-2006 9:05 Pagina 1

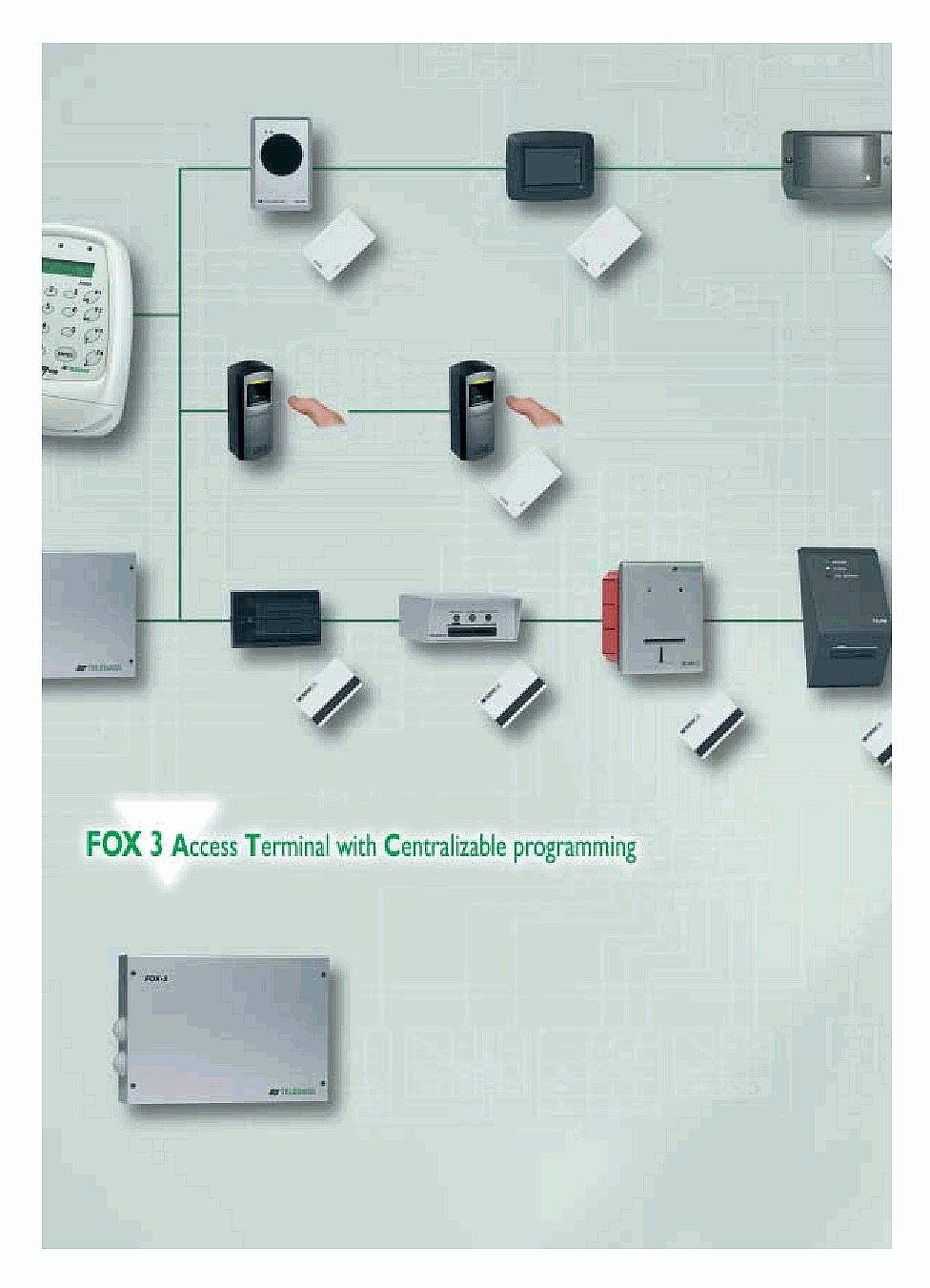

· 4 open collector inputs, freely programmable

iii) door alarm
iv) manual opening etc.

· 3 output exchange relays (1A/12V), freely configurable and 1 10° 12V
· n. 1 buzzer
· 2 serial lines
· Possible remote programming and management
· Management between the different remote heads (if magnetic)
· Storage of up to 2,000/36,000 cards and 10,000 events on non-volatile memories
· Autonomous card management, autonomous time zone control and antipass back
· Management of 2 remote reading heads

Maaggn

ettiicc

Magnetic head ISO/ABA 2nd track with low and high
coercivity Swipe or insertion (up to 400 m)

Prro

xiim

miittyy

Proximity 125Khz or 13.56 Mhz (up to 400 m
with C485 interface)

Biio

ettrriiccaall

(up to 400 m with C485 interface)

hiip

p ccaarrd

(up to 400 m with C485 interface)

· Available also as 2-gap management version and storage capability of 700 cards and 6,000

transits per gap (Fox3B model)
Local and centralized programming

· It can be centralized on:

- dedicated/dial-up lines
- ISDN
- LAN ETHERNET

· Metal case w/o display and keypad:

240 x 170 x 50 mm (also available for external use)

· Weight:

4Kg.

· Power supply:

12Vdc/12Vac (also available 3A / 230Vac version)

· Consumption:

140 mA

FOX 3

TDOP90

TD BIODIGIT

BUS

TD BIODIGIT

SMART

SL/1

SLIM 1

SLIM 3

TD/M

TDOP80

TDOP70

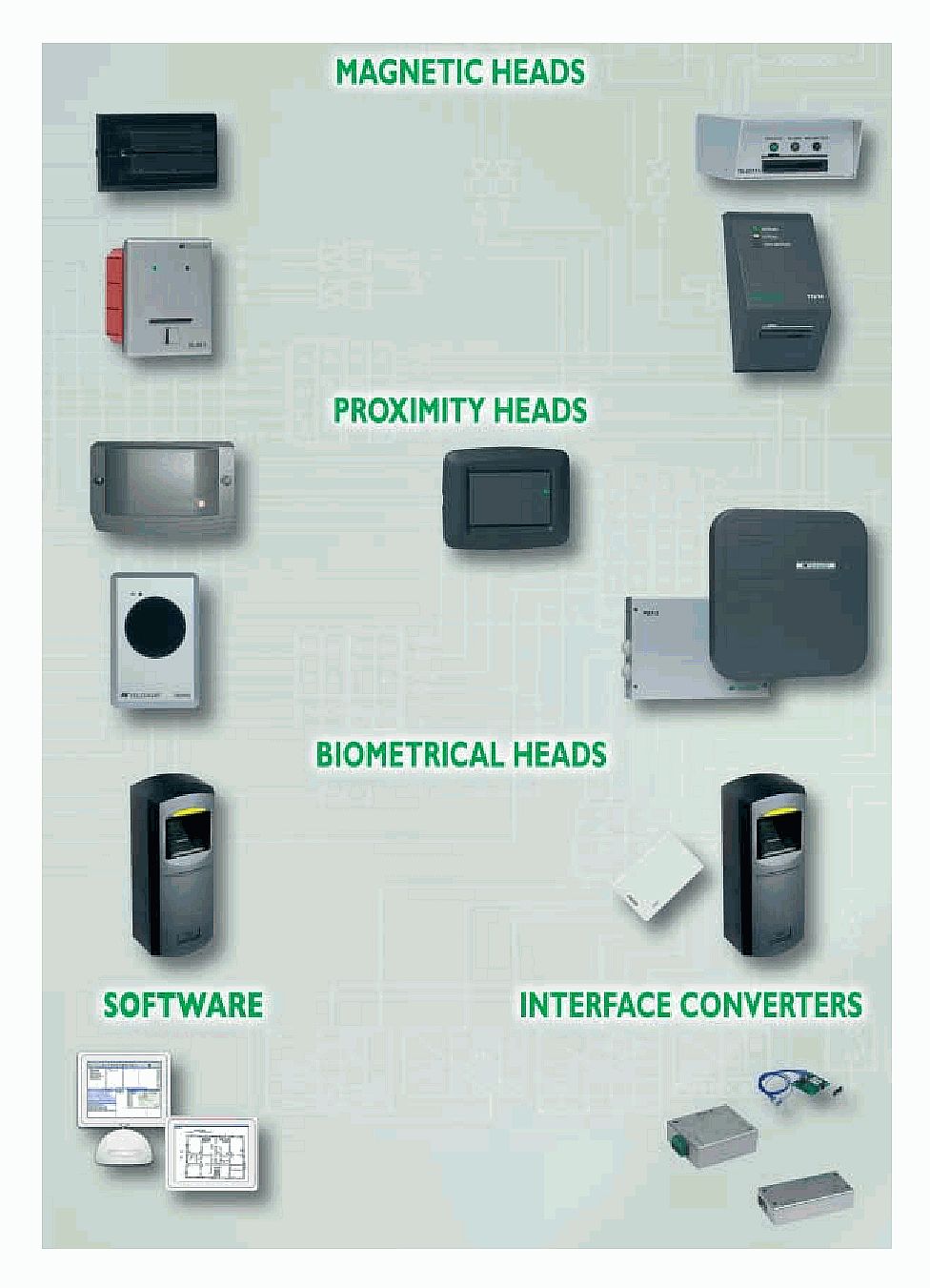

PROXIMITY HEADS

BIOMETRICAL HEADS

MAGNETIC HEADS

Depliant 7-11-2006 9:05 Pagina 2

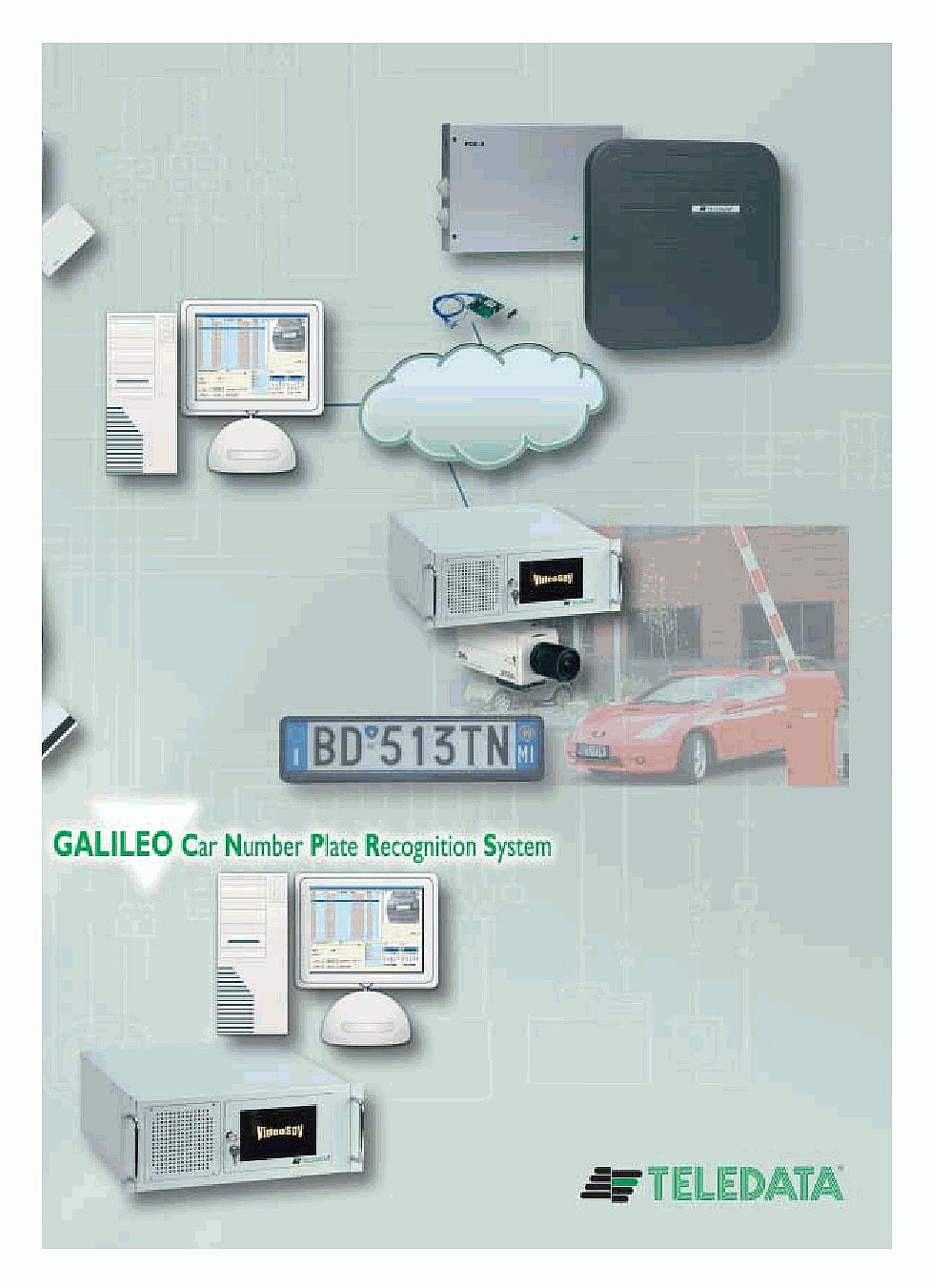

· The system has a DVR with 9/16 entries and a remote software
· Up to 8 video cameras for the car number plate recognition for each recording device
· Car number plate recognition time on a single entry 40/90 millisecond
· Management of the characters that have been completely/partially/unrecognised
· Car number plate recognition also with cars in motion and regulation of the angular field of the shot
· Operation associated to an external or free alarm; antipass back function
· Management of gap opening with 16 weekly zones + 4 holidays and 128 daily zones
· Management software able to manage up to 128 video acknowledgment devices simultaneously.
· Management on TCP/IP protocols on WAN and LAN.
· Possibility to recognize positive or negative false, correct recognition rate higher than 98.2%
· Remote gap management with programming upload and download
· Management of white and red list
· Local insertion of car number plates from Galileo module and transmission to the DVR

database (for access control)

· Import of the car number plates from DVR to be integrated in the white and red list

(for access control)

· State-of-the-art database, multiple researches and plate-photo association
· Researches in the history database with AND/OR logic for video camera, DVR, alarm,

unregistered plate, licensed plate, plate specification, date and time interval

· Customized implementation according to the specific needs of the customer
· Applications: zones with traffic restrictions, management of car-parking spaces, intelligent

par king systems

WAN - LAN network

FOX 3 VEHICULAR

TD MAXI PROX

SERVER

PT LAN

GALILEO SYSTEM

Depliant 7-11-2006 9:05 Pagina 3

SL/1 ADDITIONAL REMOTE HEAD
FOR FOX TERMINALS

Magnetic reading swipe head ISO/ABA 2

track

Installation for interiors according to LIVING BTICINO 504 standard
3 frontline LEDs
Connection up to 400 m on RS_485
Also available as stand alone (LC/A model) for managing 127 cards with:

- 2 output relays, thereof one 5° 12V
- 2 entries for gap control

Power supply 12Vdc consumption 25mA (90mA LC/A)
Dimensions 160 x 60 x 100 mm

SLIM 3 ADDITIONAL REMOTE HEAD
FOR FOX TERMINALS

Embedding magnetic reading head
Installation for exterior in a metal case for external use
3 frontline LEDs
Connection up to 400 m on RS_485
Power supply 12Vdc 25mA

SLIM 1 ADDITIONAL REMOTE HEAD

FOR FOX TERMINALS

Magnetic reading head to be installed on pillars in a metal

case for external use

3 frontline LEDs

Insertion type

Connection up to 400 m on RS_485

Power supply 12Vdc Consumption 25 mA 120 x 60 x 100 mm

TD/M ADDITIONAL REMOTE HEAD

FOR FOX TERMINALS

Magnetic reading head

Installation for exterior in a metal case for external use, IP

45 proofed

3 frontline LEDs

Insertion type

Connection up to 400 m on RS_485

Also available as stand alone (TD/MS model) for managing

127 cards with:

2 output relays, thereof one 5A12V

Power supply 12Vdc consumption 55mA 185 x 60 x 100 mm

TDOP70 PROXIMITY HEAD
FOR FOX3 TERMINALS

Reading head for proximity card 125Khz
(TDOP70M with 13.56Mhz available)
Reading distance up to 10 cm
Wall installation for external use
2 frontline two-colour LEDs and buzzer
Dimensions: 7 x 4 x 1.5 cm

TDOP80 PROXIMITY HEAD
FOR FOX3 TERMINALS

Reading head for proximity card 125Khz (TDOP80M with 13.56Mhz available)
Reading distance up to 10 cm
Embedding installation for internal use LIVING BITICINO,VIMAR, GEWIS PLAYBUS
2 frontline two-colour LEDs and buzzer
Dimensions: 7 x 4 x 1.5 cm

TDOP90 PROXIMITY HEAD
FOR FOX3 TERMINALS

Reading head for proximity card 125Khz
(TDOP90M with 13,56Mhz available)
Reading distance up to 10 cm
Installation for exterior in an anodized
metal case
2 frontline two-colour LEDs and buzzer
Anodized metal case
Dimensions: 7 x 4 x 1.5 cm

TD BIODIGIT

Biometrical reader for internal use
Storage of up to 4,000 prints and 20,000 transits
Capacitive sensor with picture dimension
230x320 pixel, resolution 500dpi
Detection area 16 x 19 mm
Recognition error rate <0.01%
Recognition time < 1sec
Cryptography 256bit AES
Dimensions 175mm x 75mm x 54mm
Power supply 9-24 Vdc

TD BIODIGIT SMART

Same features as TD BIODIGIT

Print reading combined to reading

Proximity smart card

PT LAN

Converter integrable in the central unit

with network interface 10 100 BASE T

Installed in the terminal

C3285

Interface converter RS 232/485

Galvanically isolated

Power supply 12Vdc

MDM01 MDM02 MDM06

Modem for dial-up and dedicated lines

Powered directly by the reader

Serchio

Access control system with server/client structure
Centralized management on every kind of line
(LAN, RS 485, dial-up) up to 1,024 terminals
Management of image-maps.
Detailed information on demand

FOXMAN

Software for readers programming:
FOX1S; FOX2S; FOX3S;TD/MS

FOX3VEIC and TD MAXI PROX

Installation for exterior (reading distance up to 73 cm with T-ProxCard II cards)

(reading distance up to 240 cm with T-ProxPass cards)

1 frontline two-colour LED and buzzer

It can be used for keep-entry-clear areas

Car identification by a speed of 25/30 kmph

Power supply 24Vdc Dimensions: 30 x 430 x 2.54 cm

Depliant 7-11-2006 9:05 Pagina 4

Headquarters
via G.M. Giulietti, 8 - 20132 Milan - Italy - tel.: +39 02 27 201 352 r.a. - +39 02 25 92 795 - fax: +39 02 25 93 704 - e-mail teledata@teledata-i.com

Offices Tuscany:
51011 Buggiano (Pistoia) - Via Ponte Buggianese 142 - Loc. Pittini - Tel/Fax 0572 33046 - E-mail:tesi@teledata-i.com

Offices Middle/South Italy
via Carducci, 64 - 56010 Ghezzano (Pisa) - tel./fax +39 050 87 87 25 - e-mail pisa.t@teledata-i.com

www.teledata-i.com

Stand alone terminals

Code

CARD TYPE

INSTALLATION


NOTES

SL1

Magnetic, swipe

Embedded

LC/A

Programmable with the cards. Max 127 cards

TD/MS

Magnetic, insertion

Wall, internal

TD/M

Programmable with the cards. Max 127 cards

FOX1S

Magnetica a inserimento

Wall, internal

FOX1

Programmable from SW FOXMAN

FOX2S

Magnetic, swipe

Wall, internal

FOX2

Programmable from SW FOXMAN

FOX3S

To be added

Internal

FOX3

Programmable from SW FOXMAN

TD070S

Proximity

Wall, internal/external

TD070

Programmable with the cards. Max 127 cards

TD BIODIGIT S Biometrical

Wall, internal

TD BIODIGIT

Centralizable terminals

Code

CARD TYPE

INSTALLATION


NOTES

FOX1

Magnetic, insertion

Wall, internal

FOX1

Centralized management with SW SERCHIO

FOX2

Magnetic, swipe

Wall, internal

FOX2

Centralized management with SW SERCHIO

FOX3

To be added

Internal

FOX3

Centralized management with SW SERCHIO

FOX3B

To be added

Internal

FOX3

Like Fox3 but with management of 2 gaps

FOX3_230

To be added

Internal

FOX3

Like Fox3 but with power supply 230

FOX3VEIC

Head TD MAXI PROXY
to be added

Internal

FOX3

Centralized management with SW SERCHIO

GALILEO

DVR videospy for car
number plate recognition

Internal/external

Videospy

DVR VIDEOSPY

Remote readers

Code

CARD TYPE

INSTALLATION


NOTES

LC/A

Magnetic, swipe

Embedded also for external use.The place

LC/A

must be potected against heavy rainfall

TD/M

Magnetic, insertion

Wall, also for exterior.The place must

TD/M

be protected against heavy rainfall
On pillars, also for exterior.

SLIM1

Magnetic, insertion

The place must be protected

FOX1

against heavy rainfall

SLIM3

Magnetic, insertion

Embedded also for external use

FOX2

TD070

Proximity

Wall, also for exterior

TD070

Also with 13.56 MHZ (TD070M)

TD080

Proximity

Embedded for internal use

TD080

Also with 13.56 MHZ (TD070M)

TD090

Proximity

For exterior, against aggressions

TD090

Also with 13.56 MHZ (TD070M)

TD MAXI PROX

Vehicular proximity

For exterior

TD MAXI PROX

Vehicular reading head

TD BIODIGIT

Biometrical

Wall, internal

TD BIODIGIT

Codes programming by SW BIO WIN

TD BIODIGIT

Biometrical

Wall, internal

TD BIODIGIT SMART

Codes programming by SW BIO WIN

SMART

Interface and converters

Code

TYPE INSTALLATION


NOTES

PT LAN

Ethernet interface for centralized

In the terminals

PT LAN

terminals 10 100 BaseT

MDM01

Modem for dial-up line on the terminal side

Outside the terminals

MDM01

MDM02

Modem for dedicated lines

In the terminal / outside the PC

---------

1U x 50 mm

MDM06

Modem for dial-up line on the PC side

Outside the PC

MDM01

C3285

Serial interface converter RS-232 485

Outside the PC

C3285

on the PC side

C485

Converter for biometrical or proximity

Outside the PC

--------

30 x 30 mm

reading heads

TD STAND

Scheda remota gestione varco

Interno

--------

Per TD BIODIGIT S

per lettori biometrici fino a 400mt

Software

Code

TYPE

COMPATIBILITY


NOTES

SERCHIO

Access control software

WIN XP or higher

FOXMAN

Software for stand alone terminal programming

WIN XP or higher

WINBIO

Software for biometrical reading head programming

WIN XP or higher

PRESENZE

On demand

WIN XP or higher

GALILEO

Software for car number plate recognition

WIN XP or higher

Cards and tags

Code
MTES

Magnetic standard card for every TELEDATA magnetic reader

TD -PCard II

Passive proximity card with 125 Khz

TD -ISOPCard II

Card with double magnetic and proximity technology 125 Khz

TD -PCard plus

Passive proximity card with 13.56 Mhz

TD-ProxCard II

Proximity card for vehicular reader TD MAXIPROX up to 73 cm

TD ProxPass

Active tag for vehicular reader TD MAXIPROX up to 240 cm

TELEPROG P

Terminal for programming the card numeric code of the type TD PCARDII and TD ISOPCARDII

Teledata works in compliance with the certified
quality system according to UNI EN ISO 9001

Depliant 7-11-2006 9:05 Pagina 5
